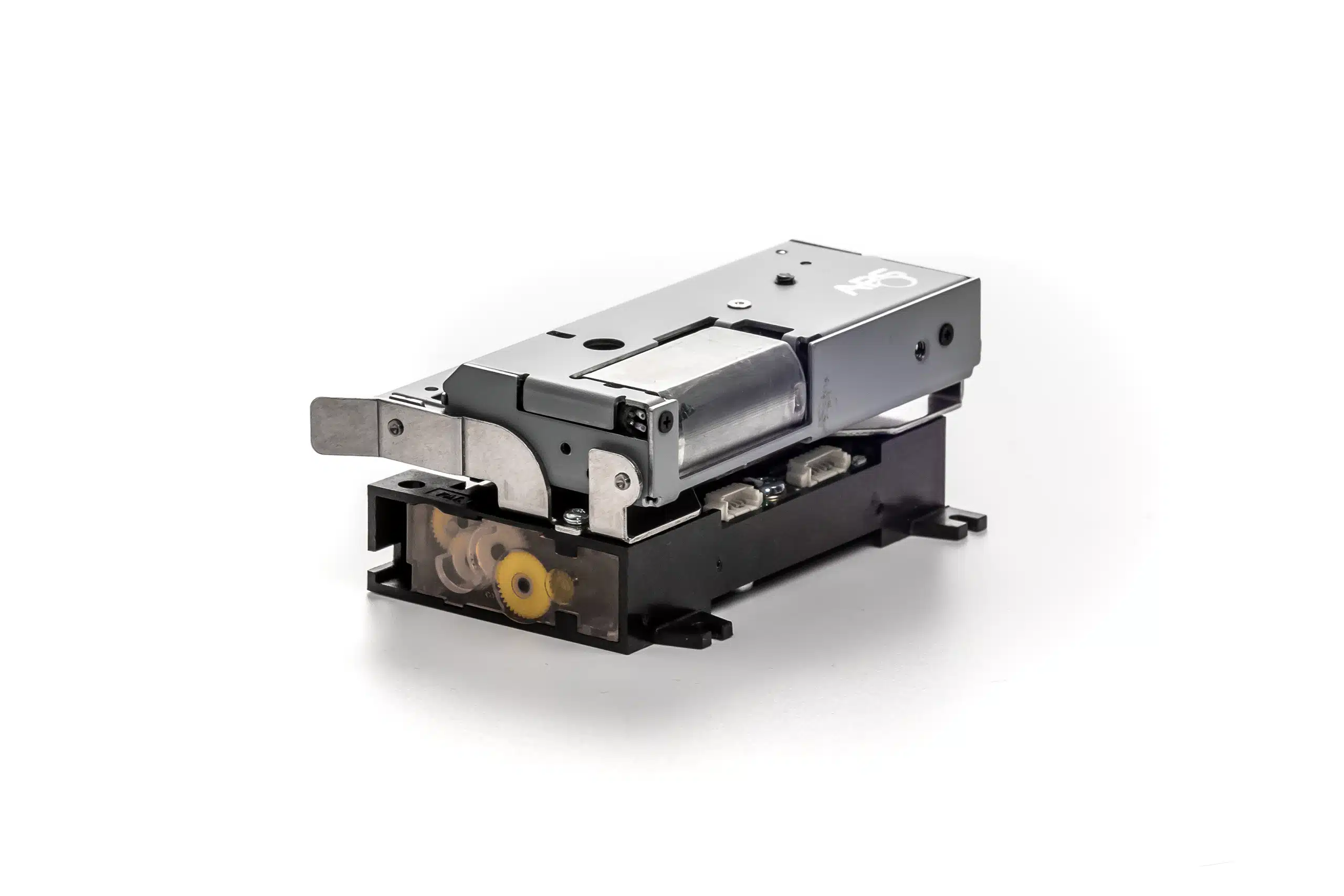

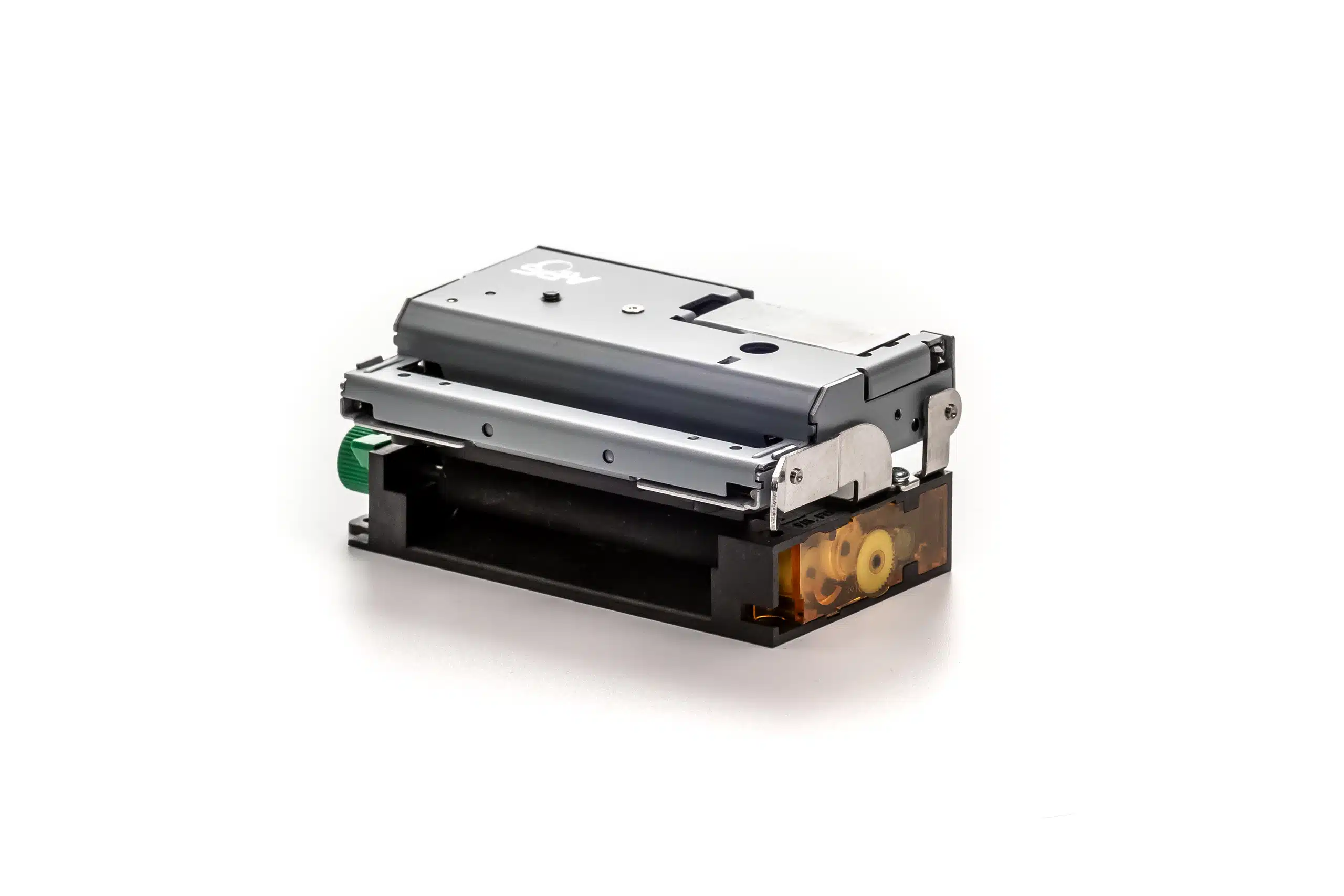

CP205-M0-GCA-FL
5V Ultra compact printer with cutter and front loading.
Highlights and features
-
Powerful cutter : full and partial for paper thickness from 63 to 150 um / 2 million cuts
-
Anti-jamming detection with automatic blade retraction
-
External pluggable switches and LED for easy integration
-
Black mark & paper end detection for label printing
-
Setup parameters saved in flash are recovered at next power-up
Download Manual Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
448
Resolution (dots/mm)
8
Max Printing speed (mm/s)
90
Print resolution (dpi)
200
Sensor
Paper End
Black Mark
Cutting Characteristics
Cutter Home Position
Mechanical Switch
Cutter Type
Full & Partial
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
60
Printing width (mm)
54
Min. paper thickness (µm)
63
Max. paper thickness (µm)
150
Paper loading
Automatic or Manual
Physical Characteristics
Dimensions (WxDxH mm)
96 x 55 x 42
Weight (g)
63
Operating Voltage
5V
Voltage range (Logic/Head)
From 5V to 8
5 V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -20° to 70℃
Storage temperature
From -40° to + 85°C
Operating humidity
20% to 85% (no condensing)
Reliability
TPH
200 km / 100M pulses
Cutter
2 million cuts
Software
Command System
APS / POS + on-demand
Driver
Android + Utility Program + IPP USB (Driverless)
Linux
Windows
SDK / Plug-in
Android
Linux
Windows
Fonts / Graphics
Character Size (easy upgradable)
Font A : 12x24
Font B : 9x17
Barcode
CODABAR
CODE39
EAN13
ITF
UPC-A
UPC-E
Graphics
graphics & logos
Supporting all user-defined fonts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Applications
Cash Registers
EFT POS
Fiscal Printers
Gaming & Lottery
Measuring Instruments and Analysers
Medical Equipment
Parking
Ticketing
Weighing Scales
Highlights and features
-
Powerful cutter : full and partial for paper thickness from 63 to 150 um / 2 million cuts
-
Anti-jamming detection with automatic blade retraction
-
External pluggable switches and LED for easy integration
-
Black mark & paper end detection for label printing
-
Setup parameters saved in flash are recovered at next power-up
