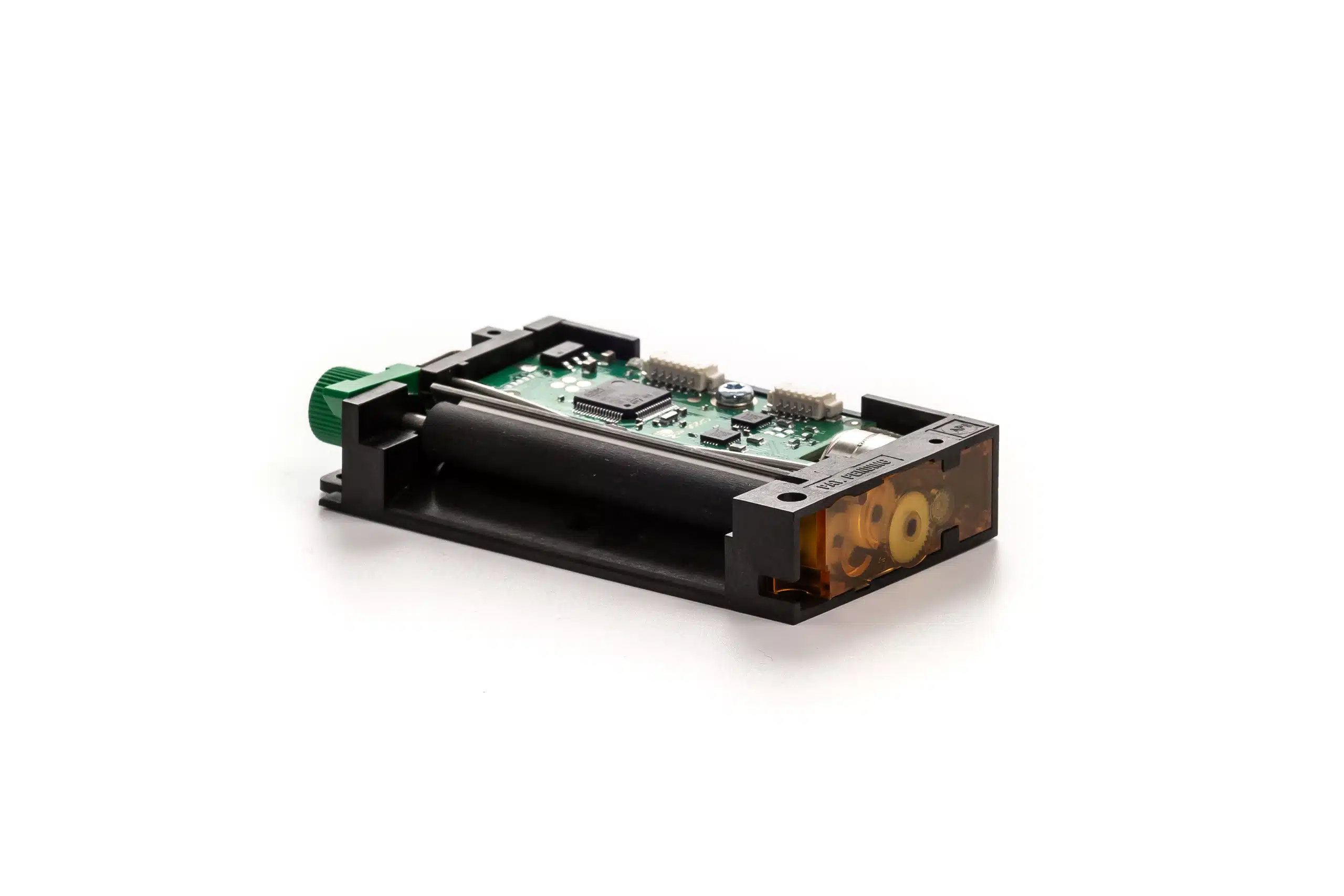

CP290-HRS-BL
24V Compact printer with back loading.
Highlights and features
-
External pluggable switches and LED for easy integration
-
Black mark & paper end detection for label printing
-
Setup parameters saved in flash are recovered at next power-up
-
Powerful text printing & graphic modes
-
Software programmable consumption (dynamic division)
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
448
Resolution (dots/mm)
8
Max Printing speed (mm/s)
150
Print resolution (dpi)
200
Sensor
Paper End
Black Mark
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
66 0/-0.5
Printing width (mm)
54
Min. paper thickness (µm)
63
Max. paper thickness (µm)
150
Paper loading
Automatic or Manual
Physical Characteristics
Dimensions (WxDxH mm)
96 x 55 x 20
Weight (g)
100
Operating Voltage
24V
Voltage range (Logic/Head)
From 18V to 27V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -20° to 70℃
Storage temperature
From -40° to + 85°C
Operating humidity
20% to 85% (no condensing)
Reliability
TPH
200 km / 100M pulses
Software
Command System
APS / POS + on-demand
Driver
Android + Utility Program + IPP USB (Driverless)
Linux
Windows
SDK / Plug-in
Android
Linux
Windows
Fonts / Graphics
Character Size (easy upgradable)
Font A : 12x24
Font B : 9x17
Barcode
CODABAR
CODE39
EAN13
ITF
UPC-A
UPC-E
Graphics
graphics & logos
Supporting all user-defined fonts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Applications
Cash Registers
EFT POS
Fiscal Printers
Gaming & Lottery
Measuring Instruments and Analysers
Medical Equipment
Parking
Ticketing
Weighing Scales
Highlights and features
-
External pluggable switches and LED for easy integration
-
Black mark & paper end detection for label printing
-
Setup parameters saved in flash are recovered at next power-up
-
Powerful text printing & graphic modes
-
Software programmable consumption (dynamic division)
