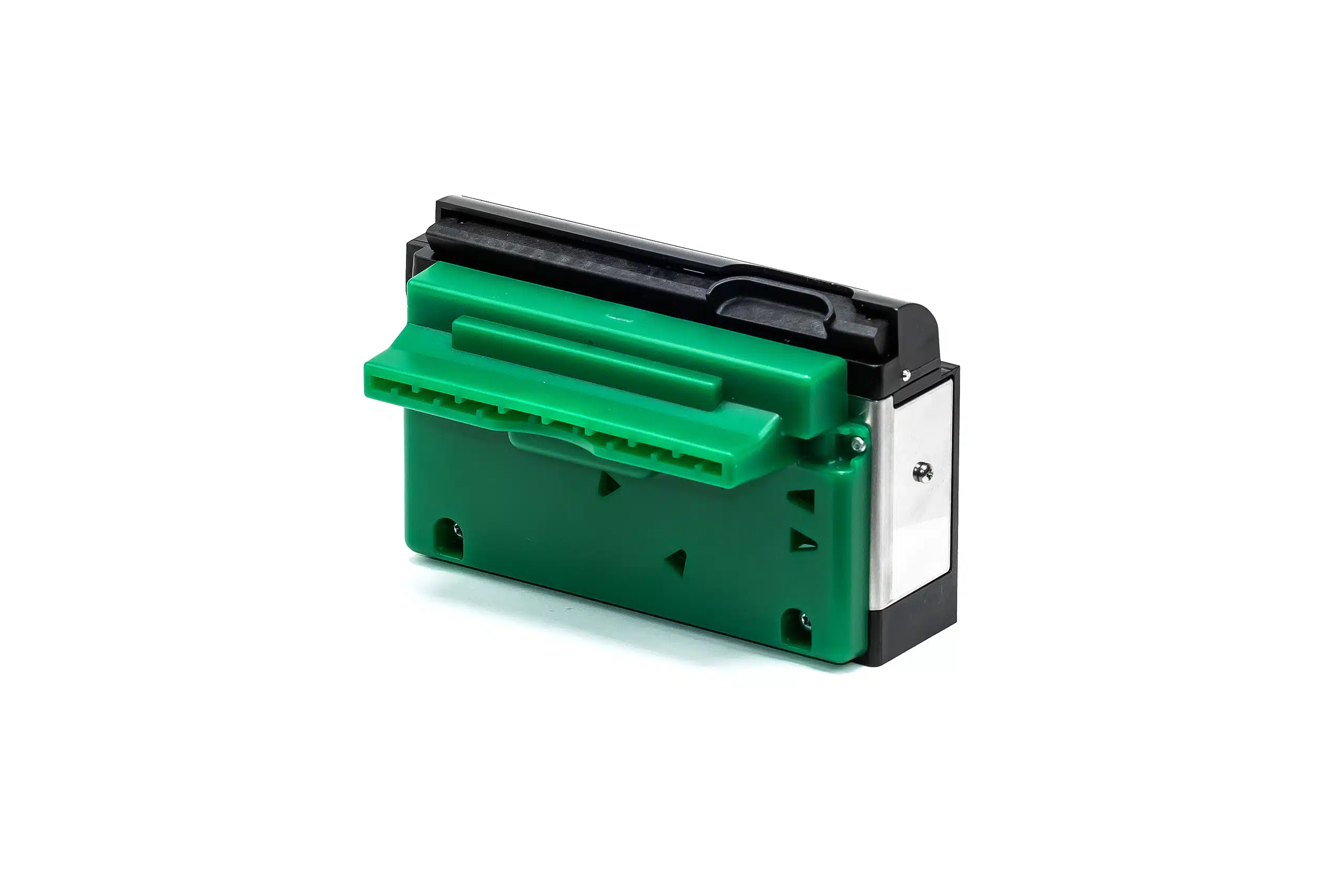

EKP3224-M0
24V Ultra compact and innovative heavy duty kiosk printer with built-in driver board and cutter.
Highlights and features
-
Ultra compact design for easy integration into confined spaces with innovative patented opening door system with straight paper path for thick paper or label printing
-
Top opening system to access easily the TPH and platen roller & easy cleaning due to TPH fixed on the top of the mechanism
-
Powerful cutter : full and partial for paper thickness from 60um to 150um
-
Anti-jamming detection with automatic blade retraction
-
Large media width from 54mm to 82,5mm with easy adjustable paper guide
-
Large media roll diameter up to 160mm
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
640
Resolution (dots/mm)
8
Max Printing speed (mm/s)
200
Print resolution (dpi)
300 (option)
200
Sensor
Cover Open
Near End
Paper End
Black Mark
Cutting Characteristics
Cutter Home Position
Optosensor
Cutter Type
Full & Partial
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
54 to 82.5 +0/-1
Printing width (mm)
80
Min. paper thickness (µm)
63
Max. paper thickness (µm)
150
Paper loading
Easy Loading
Media Roll Diamenter (mm)
160
Physical Characteristics
Dimensions (WxDxH mm)
Basic module : 124 x 31 x 77
Weight (g)
220
Operating Voltage
24V
Voltage range (Logic/Head)
From 18V to 27V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -25° to 70℃
Storage temperature
From -40° to + 80°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
100 km / 100M pulses
Cutter
2 million cuts
Software
Command System
APS / POS + on-demand
Driver
Android + Utility Program + IPP USB (Driverless)
Linux
Windows
SDK / Plug-in
Android
Linux
Windows
Fonts / Graphics
Character Size (easy upgradable)
Font A : 12x24
Font B : 9x17
Barcode
CODABAR
CODE39
EAN13
ITF
UPC-A
UPC-E
Graphics
graphics & logos
Supporting all user-defined fonts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
300 dpi
Heavy-duty Label printing
Loop Presenter / Retractor
Paper Holder
Rewinder
Applications
Gaming & Lottery
Gas Pumps & Car Wash
ID Automation
Kiosk
Parking
Ticketing
Weighing Scales
Highlights and features
-
Ultra compact design for easy integration into confined spaces with innovative patented opening door system with straight paper path for thick paper or label printing
-
Top opening system to access easily the TPH and platen roller & easy cleaning due to TPH fixed on the top of the mechanism
-
Powerful cutter : full and partial for paper thickness from 60um to 150um
-
Anti-jamming detection with automatic blade retraction
-
Large media width from 54mm to 82,5mm with easy adjustable paper guide
-
Large media roll diameter up to 160mm
