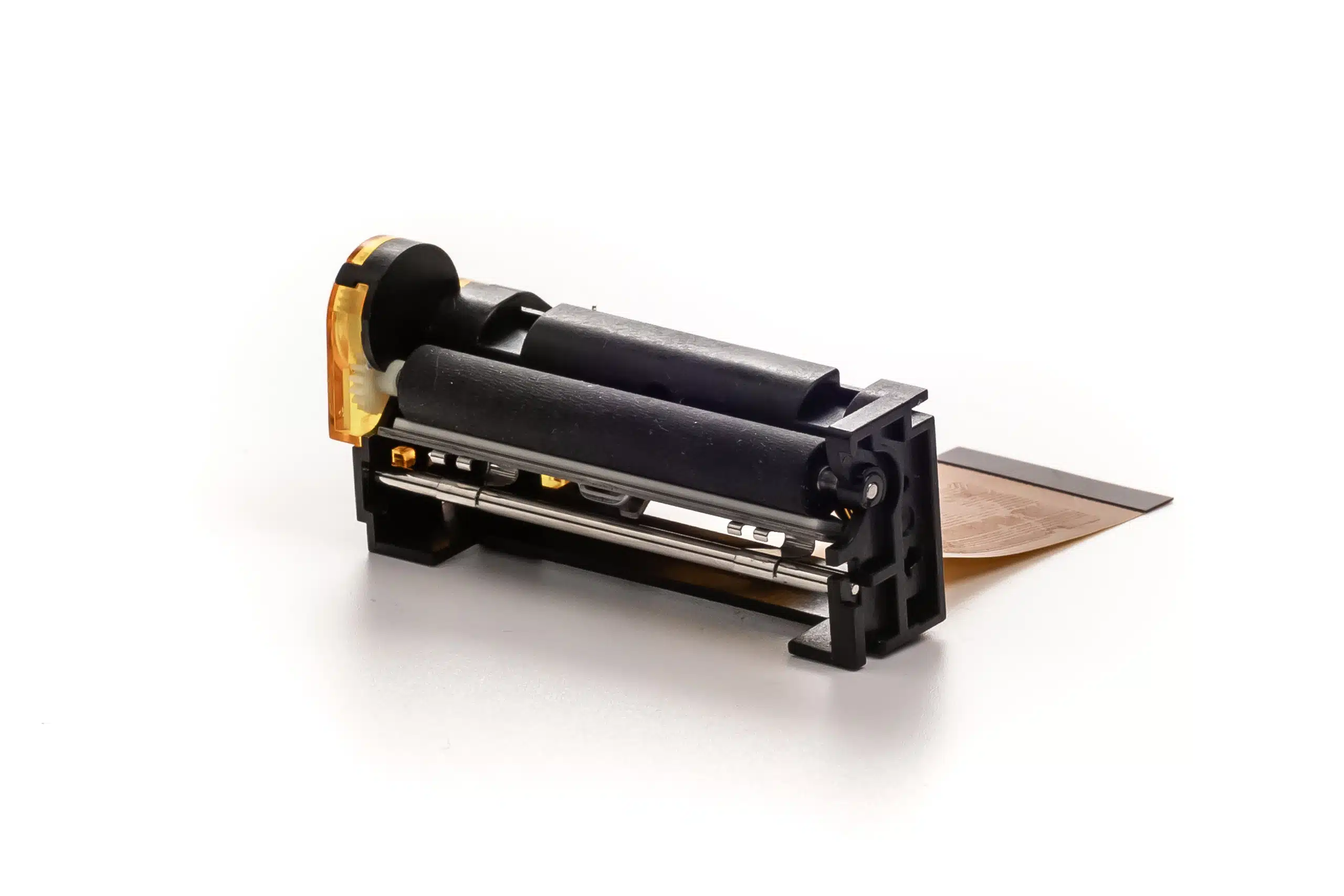

ELM205-V10-HS
5V Easy loading high speed mechanism.
Highlights and features
-
Compact & light design
-
Patented easy loading and easy door opening system
-
Starting operating voltage (logic and dots) from 2.7V up to 8.5V
-
Long TPH life of 100 million pulses or 100 km
-
Print speed up to 95 mm/s
-
Low consumption & noise
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Max Printing speed (mm/s)
95
200
Sensor
Paper End
Media Characteristics
Media Type
Ticket
Paper width (mm)
58 +0/-1
Printing width (mm)
48
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Physical Characteristics
Dimensions (WxDxH mm)
67.6 x 30.8 x 30.7
Weight (g)
40
Operating Voltage
5V
Voltage range (Logic/Head)
Logic: 3.0-5.25V / Dots : 4.5-8.5V
Paper detection
Photo-interrupter
Temperature detection
Thermistor
Head-up or Cover-open detection
Photo-interrupter
Performance Characteristics
Connector Type
FPC
Environment Characteristics
Operating temperature
From -20° to 60℃
Storage temperature
From -40° to + 80°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
100 km / 100M pulses
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Chipset UC32
Applications
ATM
Automotive
Cash Registers
EFT POS
Fiscal Printers
Hand Held Terminals
Measuring Instruments and Analysers
Medical Equipment
Taxi Meters
Highlights and features
-
Compact & light design
-
Patented easy loading and easy door opening system
-
Starting operating voltage (logic and dots) from 2.7V up to 8.5V
-
Long TPH life of 100 million pulses or 100 km
-
Print speed up to 95 mm/s
-
Low consumption & noise
