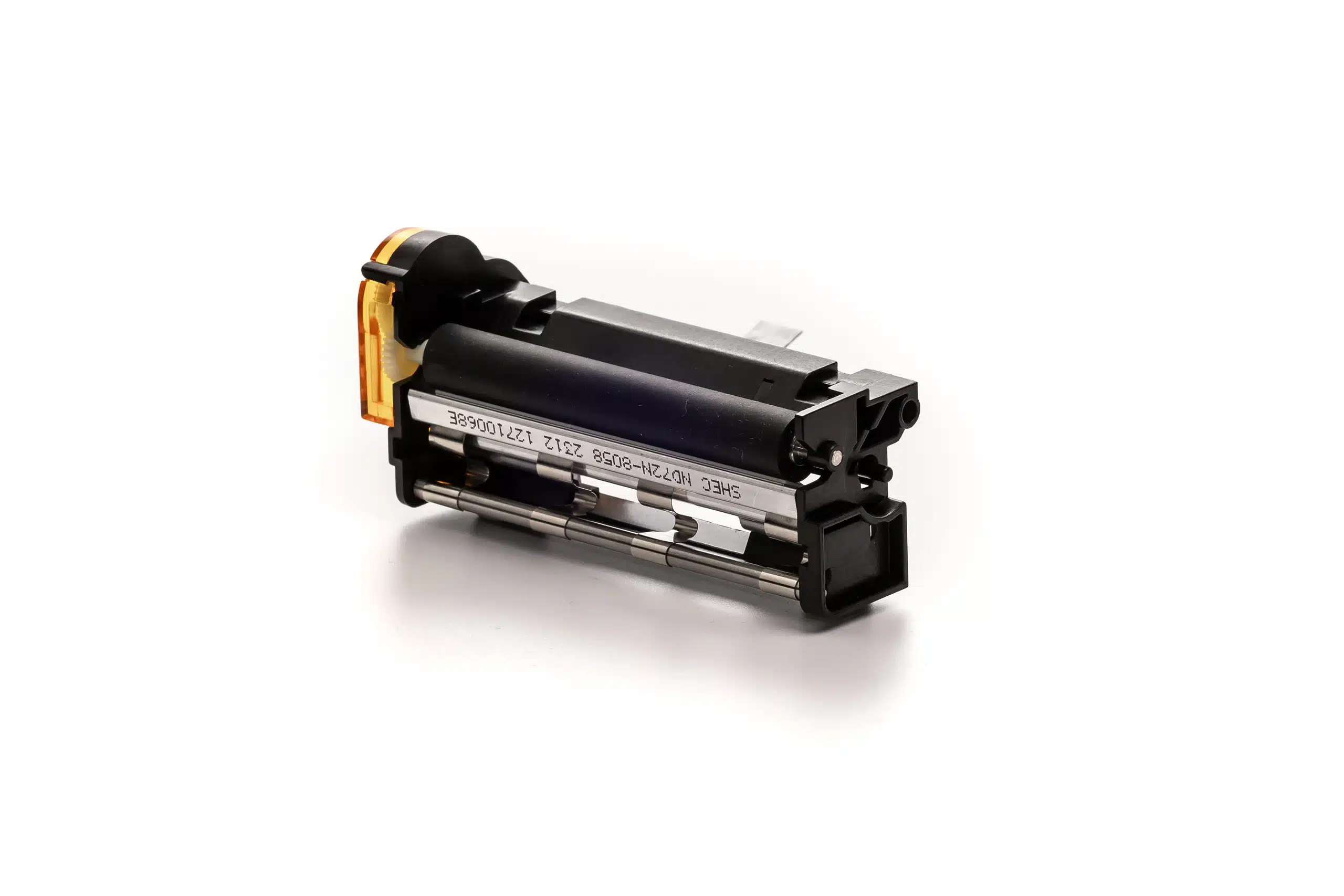

ELM3071-V10
5V Compact and heavy duty mechanism.
Highlights and features
-
Easy integration & light design
-
Patented easy loading and easy door opening system
-
Front and bottom paper loading
-
Low consumption & noise
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Max Printing speed (mm/s)
100
Print resolution (dpi)
200
Sensor
Paper End
Media Characteristics
Media Type
Ticket
Paper width (mm)
82
5
Printing width (mm)
72
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Physical Characteristics
Dimensions (WxDxH mm)
105.3 x 48.4 x 42.4
Weight (g)
115
Voltage range (Logic/Head)
5 V
Logic: 5V ±5% / Dots : 24V ±10%
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
FPC
Environment Characteristics
Operating temperature
From -10° to 60℃
Storage temperature
From -25° to + 70°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
50 km / 100M pulses
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Chipset UC32
Applications
ATM
Automotive
Cash Registers
EFT POS
Fiscal Printers
Hand Held Terminals
Measuring Instruments and Analysers
Medical Equipment
Taxi Meters
Highlights and features
-
Easy integration & light design
-
Patented easy loading and easy door opening system
-
Front and bottom paper loading
-
Low consumption & noise
