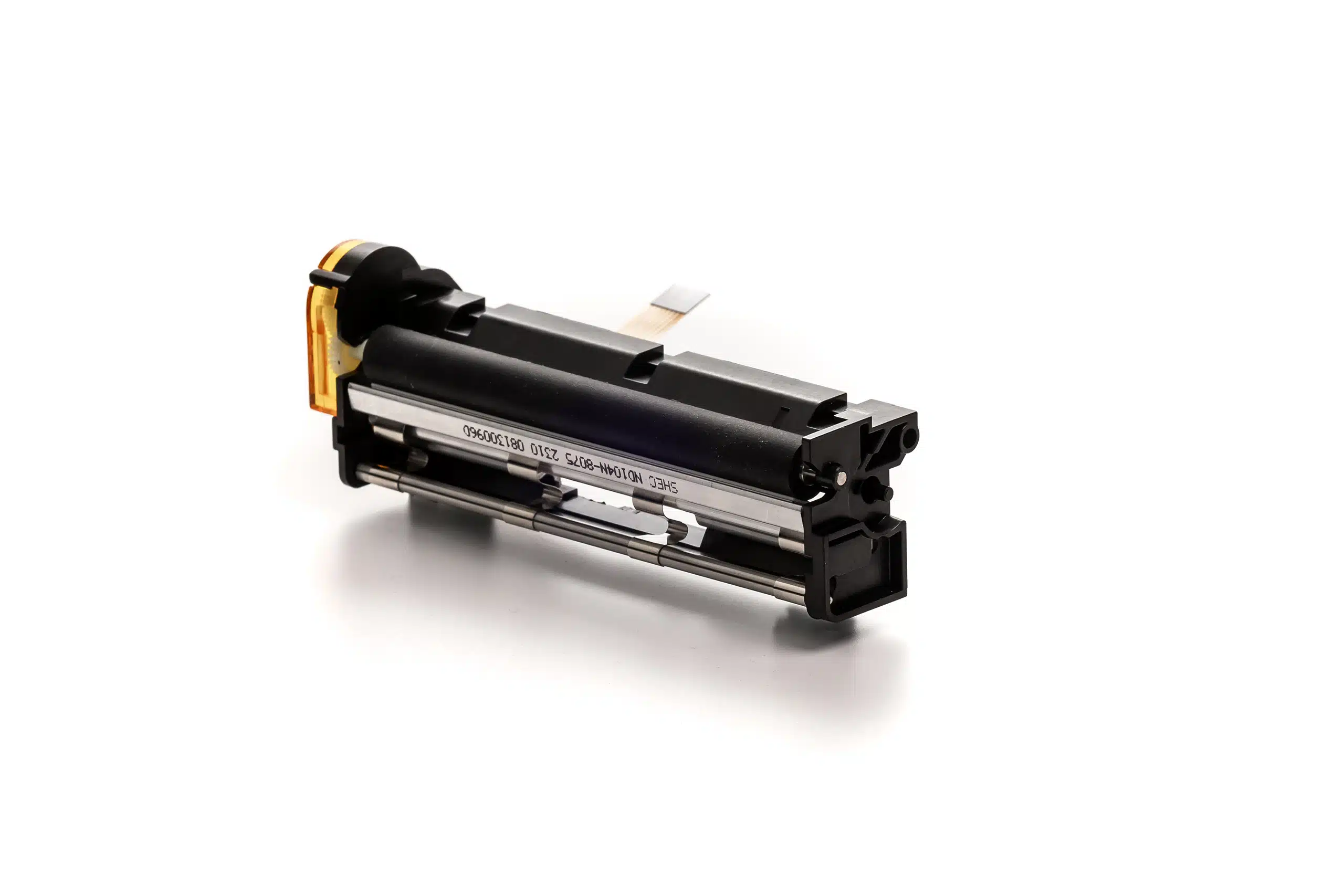

ELM4071-V10
5V Compact and heavy duty mechanism.
Highlights and features
-
Easy integration & light design
-
Patented easy loading and easy door opening system
-
Front and bottom paper loading
-
Low consumption & noise
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
864
Resolution (dots/mm)
8
Max Printing speed (mm/s)
100
Print resolution (dpi)
200
Sensor
Paper End
Media Characteristics
Media Type
Ticket
Paper width (mm)
114
Printing width (mm)
108
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Physical Characteristics
Dimensions (WxDxH mm)
137.1 x 48.4 x 42.4
Weight (g)
140
Operating Voltage
5V
Voltage range (Logic/Head)
Logic: 5V ±5% / Dots : 24V ±10%
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
FPC
Environment Characteristics
Storage temperature
From -25° to + 70°C
Operating humidity
10% to 90% (no condensing)
20% to 85% (no condensing)
Reliability
TPH
50 km / 100M pulses
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Chipset UC32
Applications
ATM
Automotive
Cash Registers
EFT POS
Fiscal Printers
Hand Held Terminals
Measuring Instruments and Analysers
Medical Equipment
Taxi Meters
Highlights and features
-
Easy integration & light design
-
Patented easy loading and easy door opening system
-
Front and bottom paper loading
-
Low consumption & noise
