Panel Printers

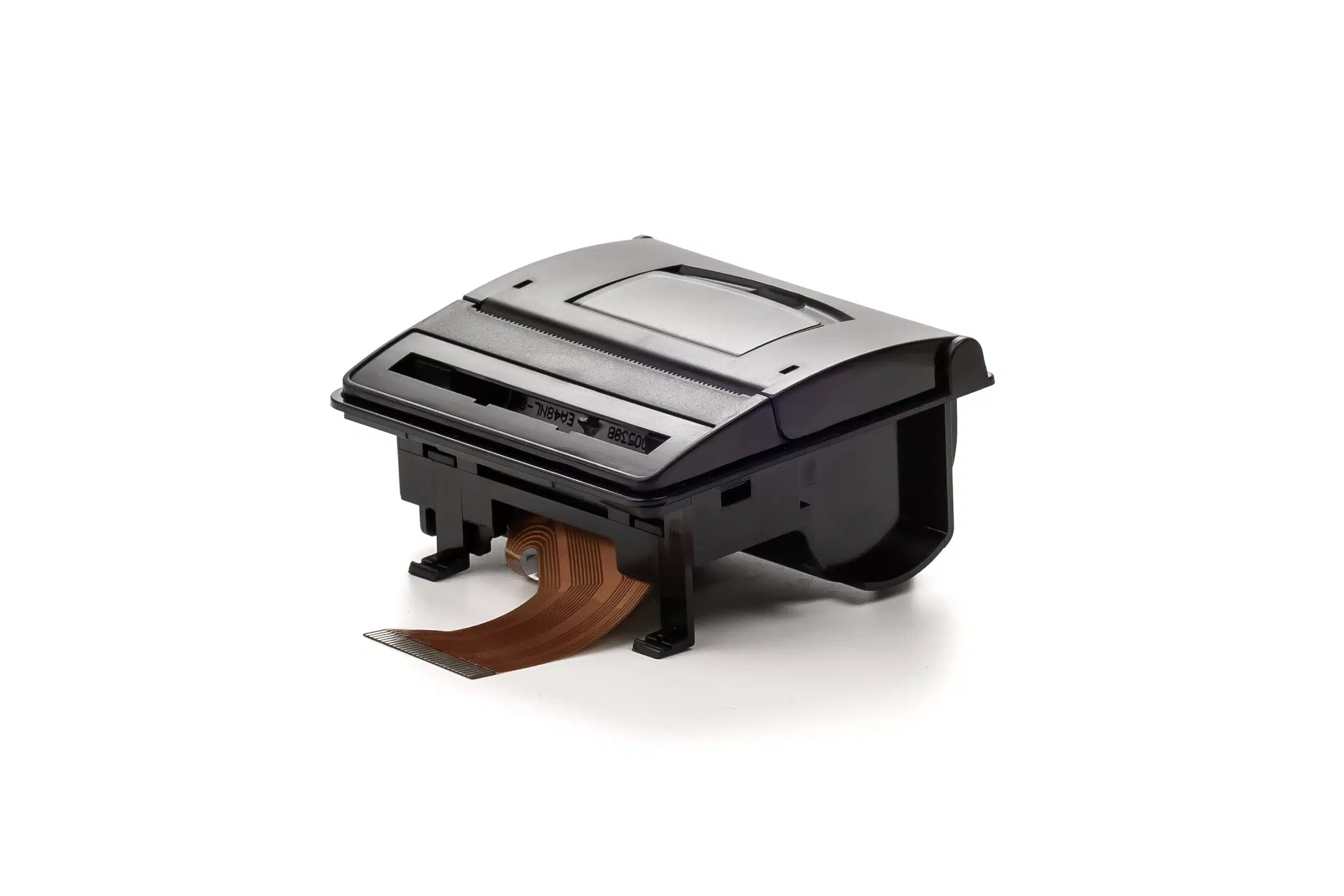

EPM203-5-HS

5V Ultra compact high speed bucket printer for Ø30mm max paper roll diameter.

Highlights and features

  • Ultra compact design

  • Patented easy loading and easy door opening system

  • Starting operating voltage (logic and dots) from 4.5V up to 9.5V

  • Long life of 100 million pulses, 100 km

  • Low consumption

  • Up to 95 mm/s printing speed

Specifications

Options

Applications

Highlights

Print Characteristics

Print method

Thermal

Number of dots

384

Resolution (dots/mm)

8

Max Printing speed (mm/s)

95

Print resolution (dpi)

200

Sensor

Cover Open

Paper End

Media Characteristics

Media Type

Ticket

Paper width (mm)

58 +0/-1

Printing width (mm)

48

Min. paper thickness (µm)

63

Max. paper thickness (µm)

80

Paper loading

Easy Loading

Media Roll Diamenter (mm)

32

Physical Characteristics

Dimensions (WxDxH mm)

76.8 x 77.4 x 43.5

Weight (g)

67

Operating Voltage

5V

Voltage range (Logic/Head)

From 2

7 V to 9

5 V

Paper detection

Opto sensor

Temperature detection

Thermistor

Head-up or Cover-open detection

Opto sensor

Performance Characteristics

Connector Type

Flex

Environment Characteristics

Operating temperature

From -5° to 50℃

Storage temperature

From -27° to + 80°C

Operating humidity

10% to 90% (no condensing)

Reliability

TPH

100 km / 100M pulses

Standards

Certifications

ISO 9001:2015

ISO13485:2016 certified - RoHS compliant

ISO14001

Options

Longer Flex

Applications

Automotive

EFT POS

Hand Held Terminals

ID Automation

Measuring Instruments and Analysers

Medical Equipment



Highlights and features

  • Ultra compact design

  • Patented easy loading and easy door opening system

  • Starting operating voltage (logic and dots) from 4.5V up to 9.5V

  • Long life of 100 million pulses, 100 km

  • Low consumption

  • Up to 95 mm/s printing speed
