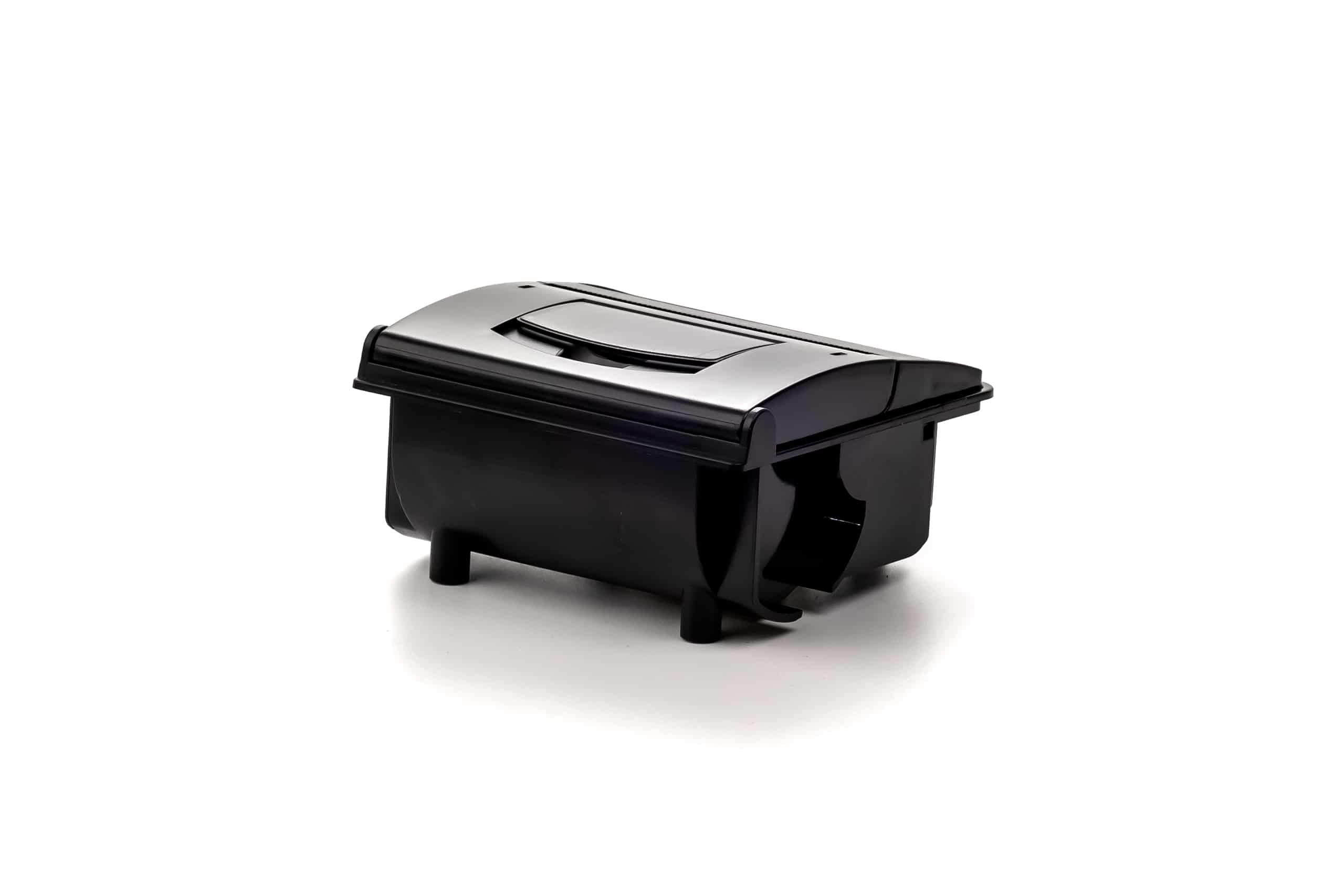

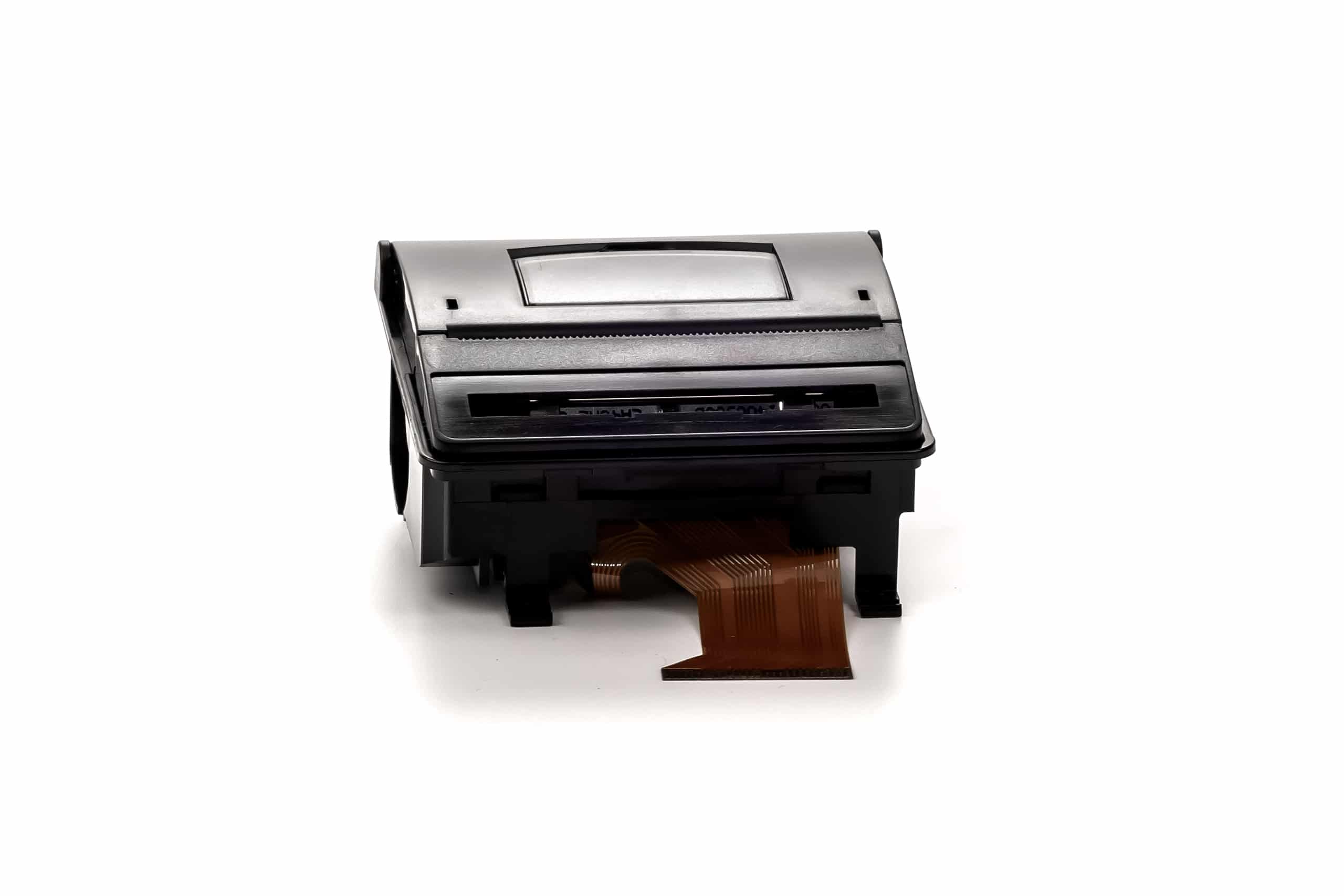

EPM203-5-LV
5V Ultra compact low voltage bucket printer for Ø30mm max paper roll diameter.
Highlights and features
-
Ultra compact design
-
Patented easy loading and easy door opening system
-
Starting operating voltage (logic and dots) from 2.7V up to 9.5V
-
Long life of 100 million pulses, 100 km
-
Low consumption
-
Up to 85 mm/s printing speed
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Max Printing speed (mm/s)
95
Print resolution (dpi)
200
Sensor
Cover Open
Paper End
Media Characteristics
Media Type
Ticket
Paper width (mm)
58 +0/-1
Printing width (mm)
48
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Media Roll Diamenter (mm)
32
Physical Characteristics
Dimensions (WxDxH mm)
76.8 x 77.4 x 43.5
Weight (g)
67
Operating Voltage
5V
Voltage range (Logic/Head)
From 4
5 V to 9
5 V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
Flex
Environment Characteristics
Operating temperature
From -5° to 50℃
Storage temperature
From -27° to + 80°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
100 km / 100M pulses
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Longer Flex
Applications
Automotive
EFT POS
Hand Held Terminals
ID Automation
Measuring Instruments and Analysers
Medical Equipment
Highlights and features
-
Ultra compact design
-
Patented easy loading and easy door opening system
-
Starting operating voltage (logic and dots) from 2.7V up to 9.5V
-
Long life of 100 million pulses, 100 km
-
Low consumption
-
Up to 85 mm/s printing speed
