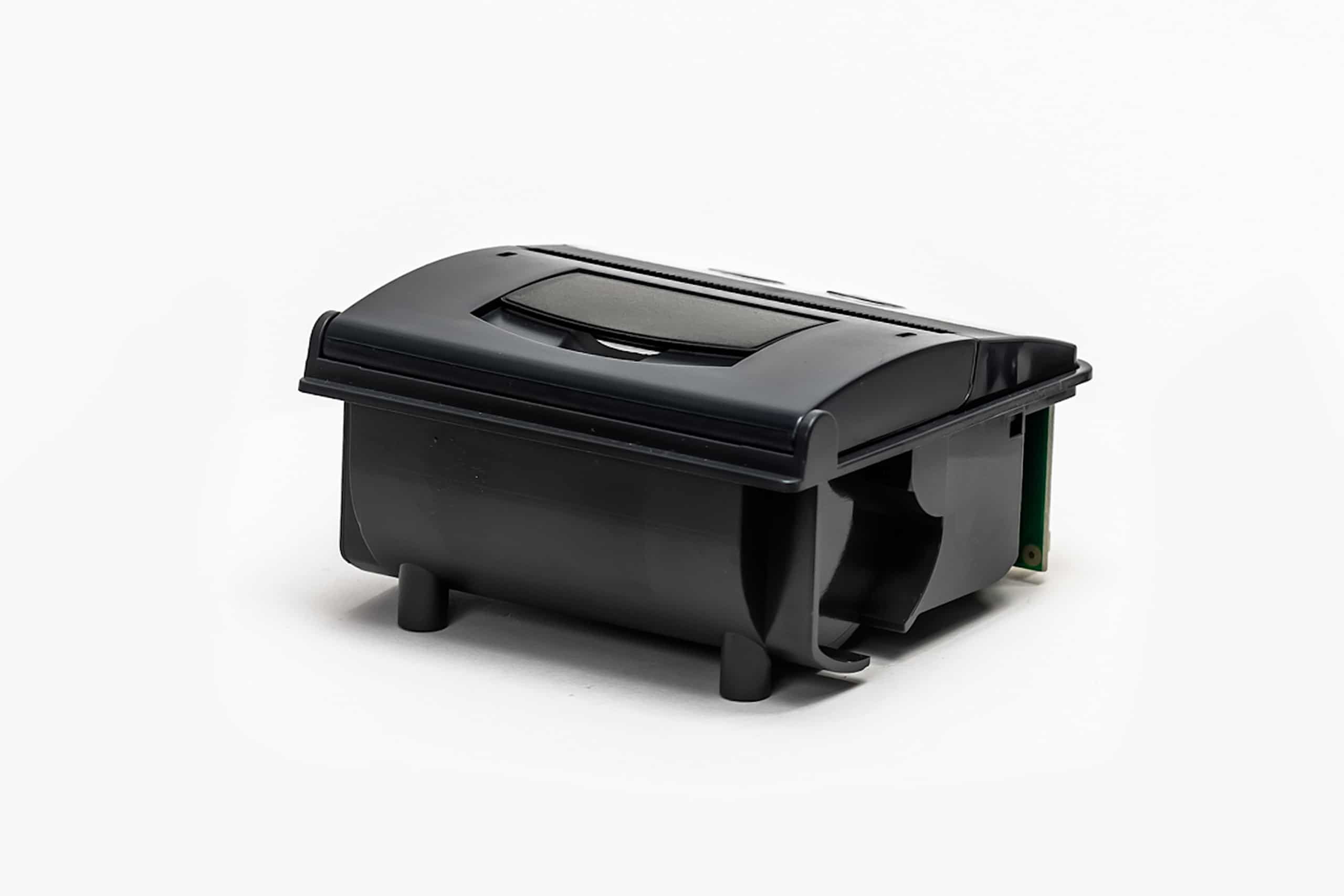

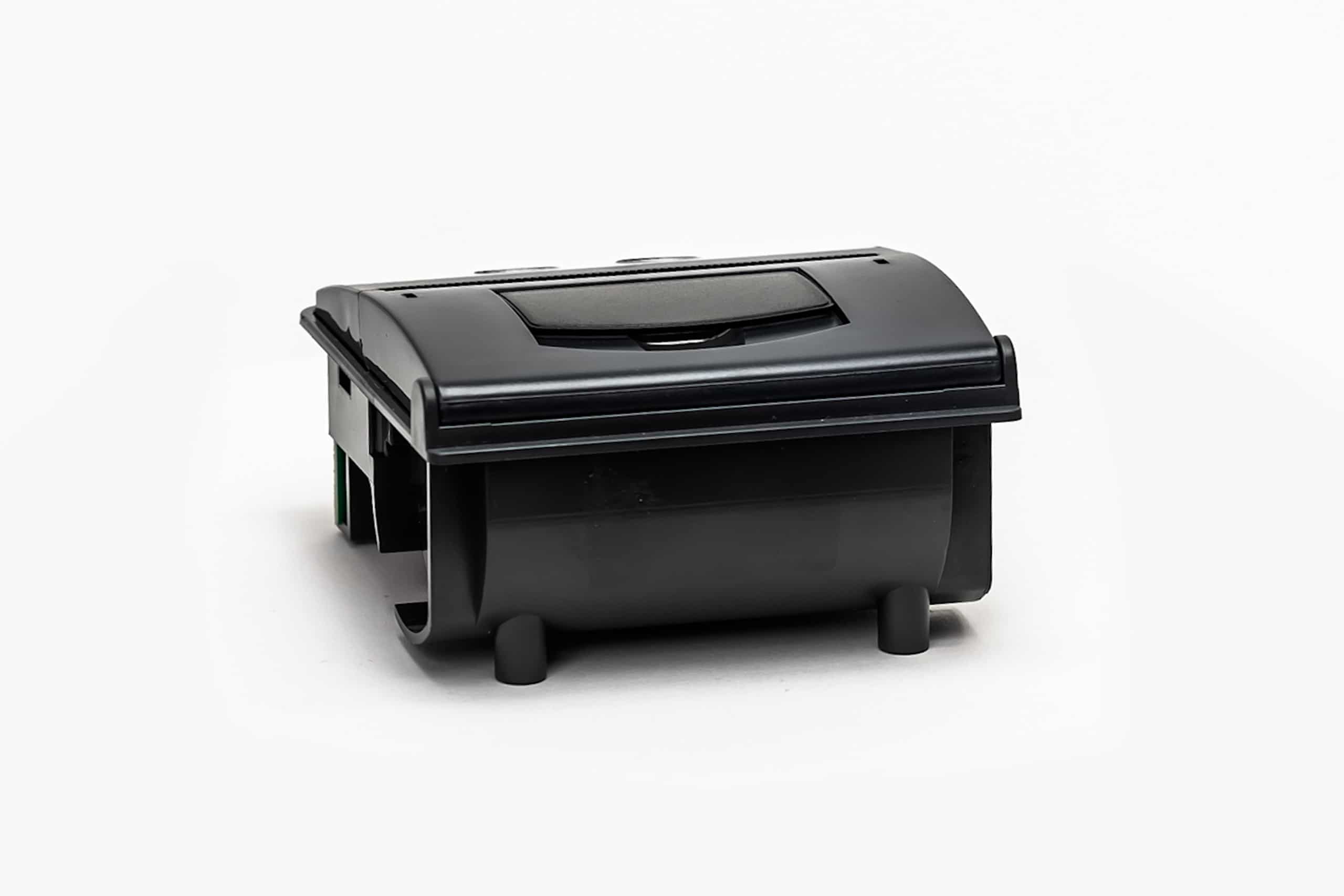

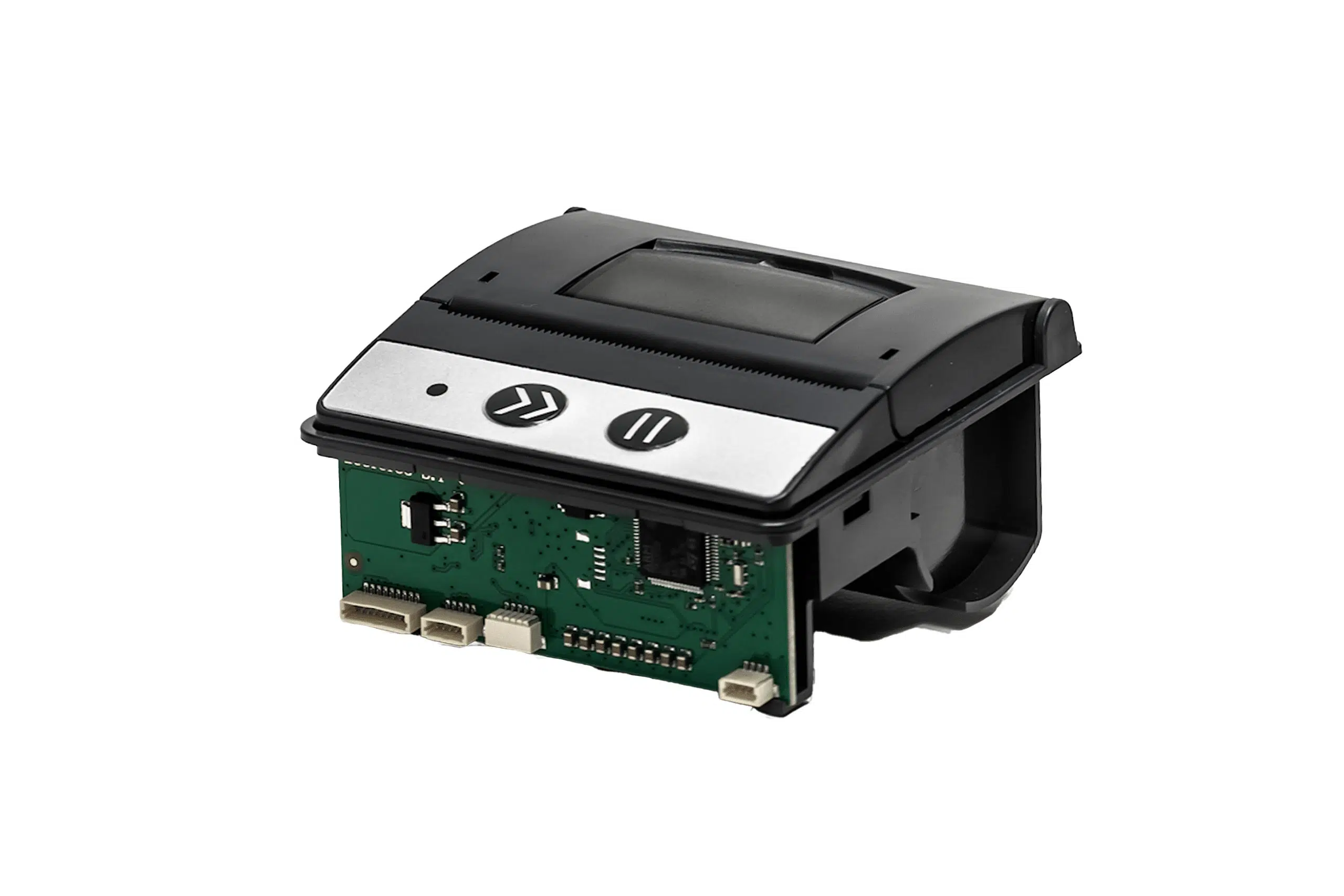

EPM205-30-M0
5V Compact bucket printer with built-in driver board for Ø30mm max paper roll diameter.
Highlights and features
-
Fully hot pluggable printer
-
Integrated keyboard with paper feed and ON-OFF line push button and LED
-
Full control over printing quality/speed via control codes (Speed clamping, acceleration smoothing… )
-
Black mark detection
-
Printer setup parameters can be saved in flash
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Max Printing speed (mm/s)
100
Print resolution (dpi)
200
Sensor
Cover Open
Paper
Black Mark
Media Characteristics
Media Type
Ticket
Paper width (mm)
58 +0/-1
Printing width (mm)
48
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Media Roll Diamenter (mm)
32
Physical Characteristics
Dimensions (WxDxH mm)
76
8 x 77
4 x 43
5
Weight (g)
80
Operating Voltage
5V
Voltage range (Logic/Head)
From 4
0 V to 9
5 V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -5° to 50℃
Storage temperature
From -25° to + 70°C
Operating humidity
20% to 85% (no condensing)
Reliability
TPH
50 km / 100M pulses
Software
Command System
APS / POS + on-demand
Driver
Android + Utility Program + IPP USB (Driverless)
Linux
Windows
SDK / Plug-in
Android
Linux
Windows
Fonts / Graphics
Character Size (easy upgradable)
Font A : 12x24
Font B : 9x17
Barcode
CODABAR
CODE39
EAN13
ITF
UPC-A
UPC-E
Graphics
graphics & logos
Supporting all user-defined fonts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Longer Flex
Applications
Automotive
EFT POS
Hand Held Terminals
ID Automation
Measuring Instruments and Analysers
Medical Equipment
Highlights and features
-
Fully hot pluggable printer
-
Integrated keyboard with paper feed and ON-OFF line push button and LED
-
Full control over printing quality/speed via control codes (Speed clamping, acceleration smoothing… )
-
Black mark detection
-
Printer setup parameters can be saved in flash
