Medical Printers

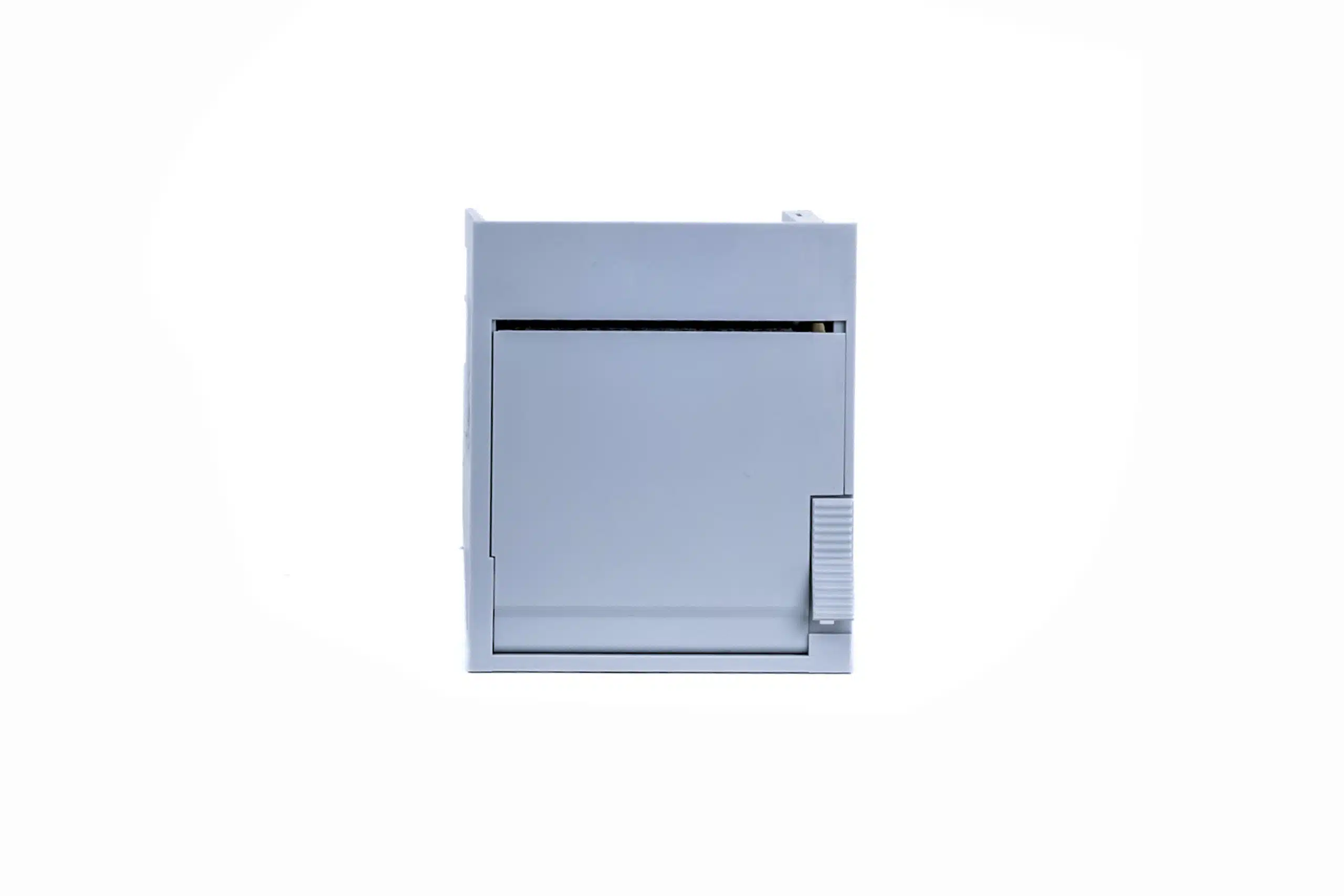

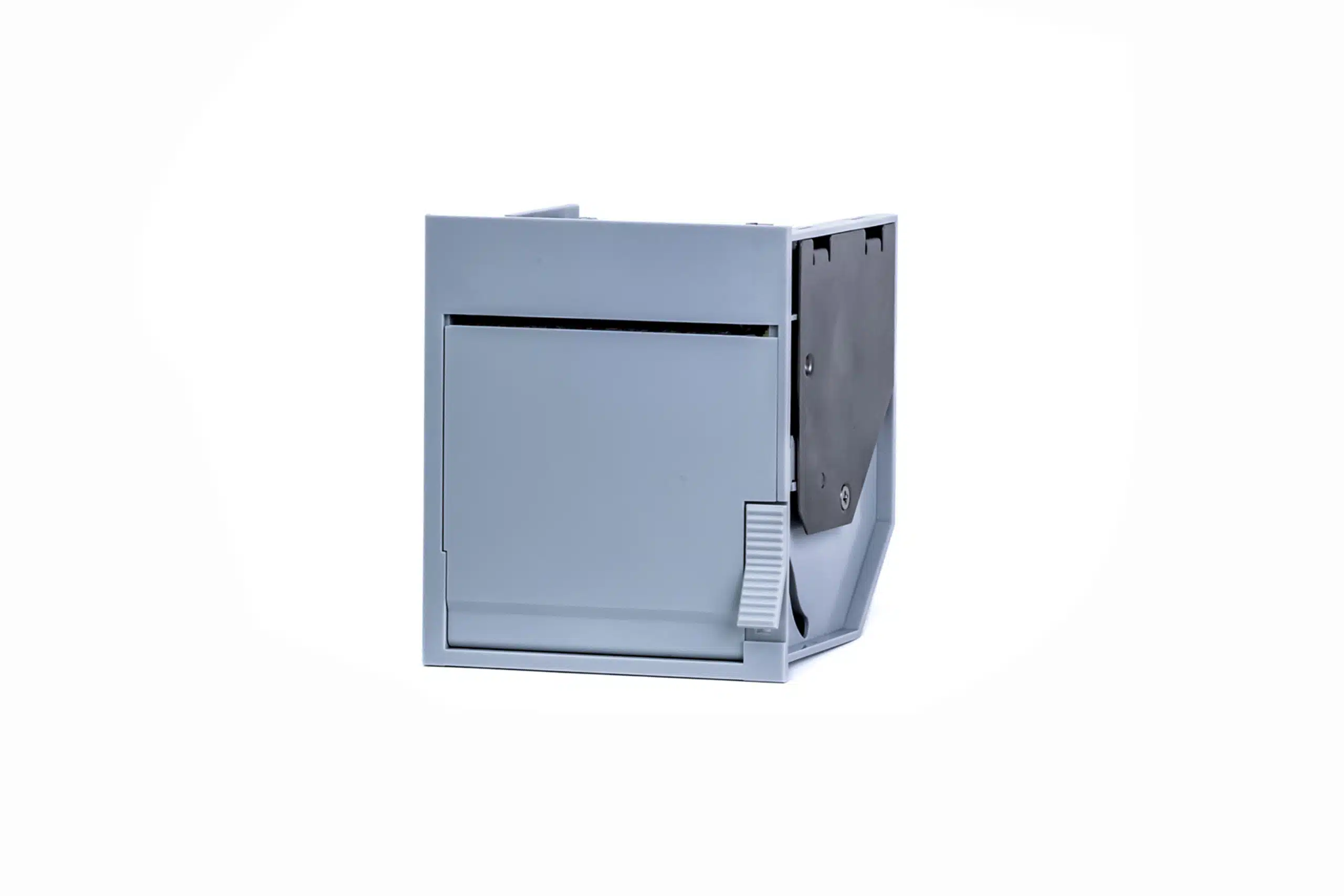

GPR212-M0

12V Compact chart recorder and printer with built-in driver board.

Highlights and features

Fully hot plug printer with easy opening (latched cover)
Software programmable consumption with dynamic division and high speed (up to 50 mm/s)
Chart print speed selectable : 0.5, 1, 5, 6.25, 10, 12.5, 25, 50 (mm/s)
Recording Mode: waveform (up to 4 traces), text & graphics
Full control over printing quality/speed
Printer setup parameters can be saved in flash

Get your custom quote Compare with other products Download Manual Download Specs Sheet

Specifications

Options

Applications

Highlights

Print Characteristics

Print method

Thermal

Number of dots

384

Resolution (dots/mm)

Max Printing speed (mm/s)

Print resolution (dpi)

200

Sensor

Cover Open

Paper

Media Characteristics

Media Type

Ticket

Paper width (mm)

50 ± 1

Printing width (mm)

Min. paper thickness (µm)

Max. paper thickness (µm)

Paper loading

Easy Loading

Media Roll Diamenter (mm)

Physical Characteristics

Dimensions (WxDxH mm)

7 x 74

9 x 84

Weight (g)

190

Operating Voltage

12V

Voltage range (Logic/Head)

12 Volts ± 10 %

Paper detection

Opto sensor

Temperature detection

Thermistor

Head-up or Cover-open detection

Opto sensor

Performance Characteristics

Connector Type

FCI-71292-002 (40pins male)

USB

Environment Characteristics

Operating temperature

From 0° to 65℃

Storage temperature

From -20° to + 60°C

Operating humidity

10% to 90% (no condensing)

Reliability

TPH

50 km / 100M pulses

Software

Command System

APS / POS + on-demand

Driver

Android + Utility Program + IPP USB (Driverless)

Linux

Windows

SDK / Plug-in

Android

Linux

Windows

Fonts / Graphics

Character Size (easy upgradable)

Font A : 12x24

Font B : 9x17

Barcode

CODABAR

CODE39

EAN13

ITF

UPC-A

UPC-E

Graphics

graphics & logos

Supporting all user-defined fonts

Standards

Certifications

ISO 9001:2015

ISO13485:2016 certified - RoHS compliant

ISO14001

Options

Applications

Measuring Instruments and Analysers

Medical Equipment

Highlights and features

Fully hot plug printer with easy opening (latched cover)
Software programmable consumption with dynamic division and high speed (up to 50 mm/s)
Chart print speed selectable : 0.5, 1, 5, 6.25, 10, 12.5, 25, 50 (mm/s)
Recording Mode: waveform (up to 4 traces), text & graphics
Full control over printing quality/speed
Printer setup parameters can be saved in flash
