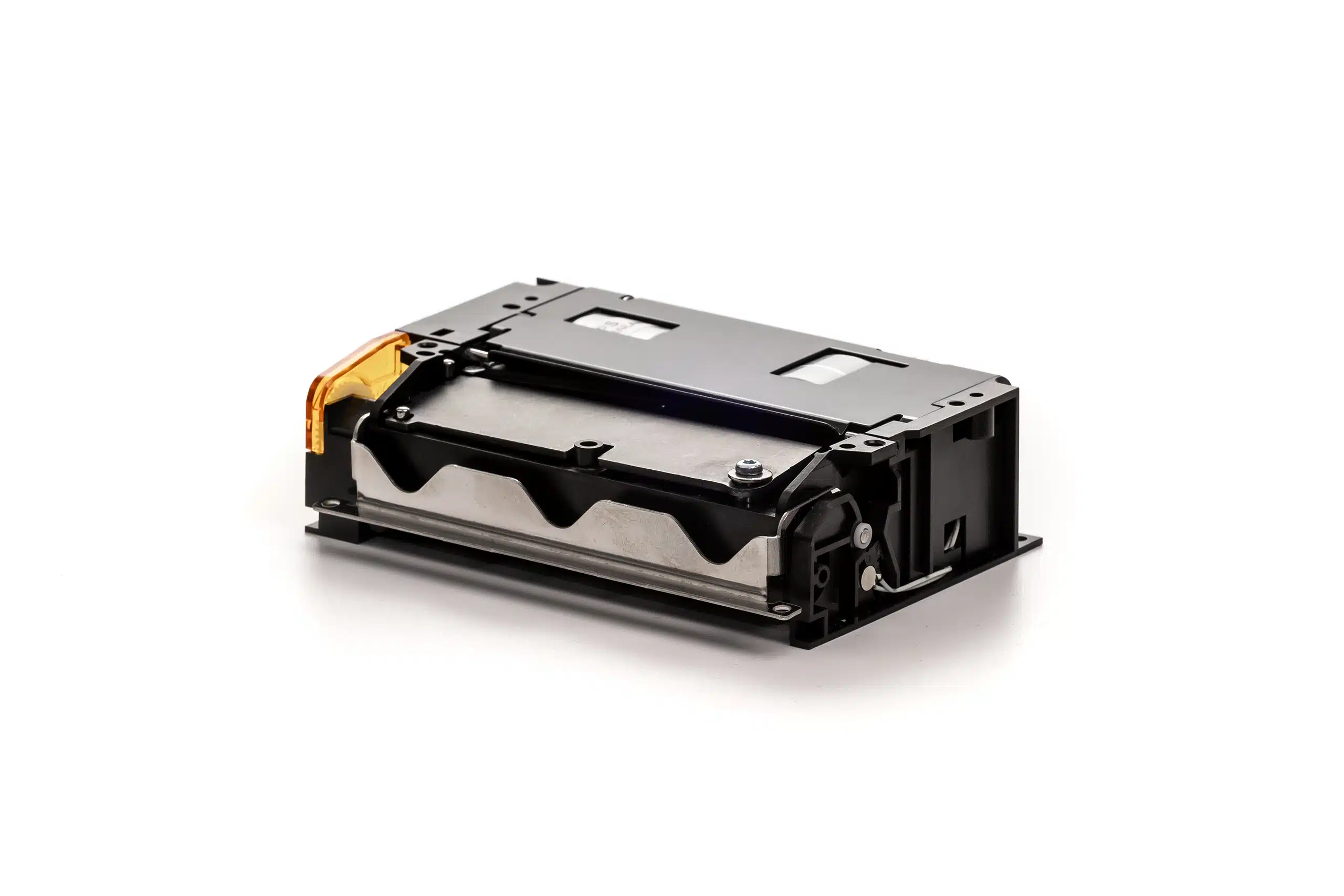

HSP3208-KSR
24V Heavy duty printer with integrated cutter, kiosk version with right black mark detection.
Highlights and features
-
Fast printing speed up to 300 mm per second
-
Powerful cutter : full and partial for paper thickness from 63 to 190 μm / 2 million cuts
-
Cuts paper up to 220 μm in less than 550 ms & 80 μm in less than 240 ms
-
Black mark & paper end detection for label printing
-
Very silent operation and high print quality
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
640
Resolution (dots/mm)
8
Max Printing speed (mm/s)
300
Print resolution (dpi)
300 (option)
200
Sensor
Paper End
Black Mark
Cutting Characteristics
Cutter Home Position
Mechanical Switch
Cutter Type
Full & Partial
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
80 to 82.5
Printing width (mm)
80
Min. paper thickness (µm)
63
Max. paper thickness (µm)
190
Paper loading
Automatic
Physical Characteristics
Dimensions (WxDxH mm)
125 x 82.5 x 35.7
Weight (g)
450
Operating Voltage
24V
Voltage range (Logic/Head)
5V or 3.3V / 24 V ± 10%
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Mechanical switch
Performance Characteristics
Connector Type
FPC
Environment Characteristics
Operating temperature
From -20° to 70℃
Storage temperature
From -40° to + 80°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
200 km / 100M pulses
Cutter
2 million cuts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
300 dpi
86 mm Paper Width
Chipset UC32
Controller Board
Heavy-duty Label printing
Linerless
Applications
ATM
Gaming & Lottery
Gas Pumps & Car Wash
Kiosk
Parking
Ticketing
Weighing Scales
Highlights and features
-
Fast printing speed up to 300 mm per second
-
Powerful cutter : full and partial for paper thickness from 63 to 190 μm / 2 million cuts
-
Cuts paper up to 220 μm in less than 550 ms & 80 μm in less than 240 ms
-
Black mark & paper end detection for label printing
-
Very silent operation and high print quality
