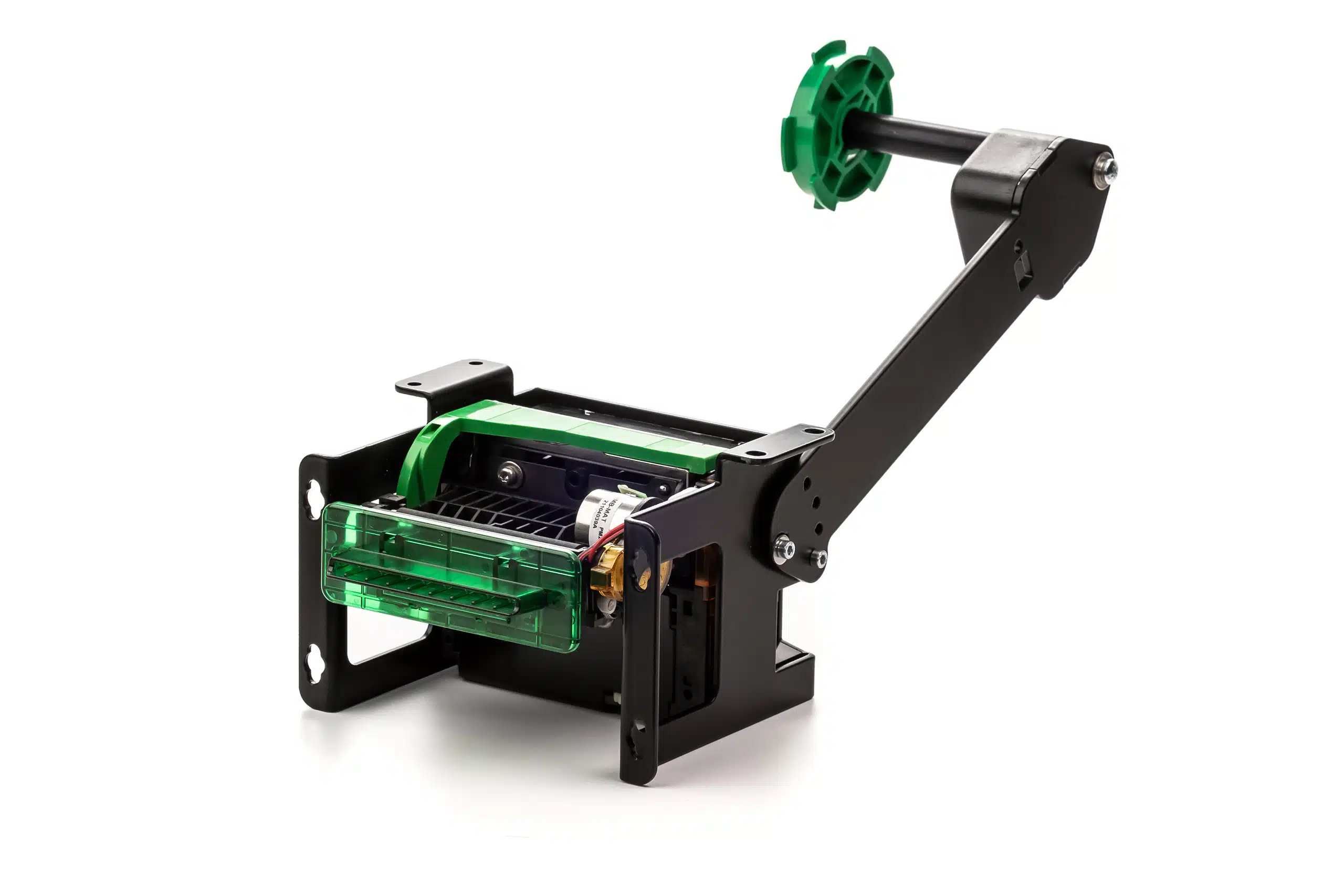

MKL312
12V Compact and modular heavy duty kiosk printer with built-in driver board and cutter.
Highlights and features
-
Heavy duty, compact and full modular
-
Fast printing speed up to 300 mm per second
-
Powerful cutter : full and partial for paper thickness from 63 to 190 um / 2 million cuts
-
Pulls large diameter paper roll up to 250 mm
-
Presenter/retractor, paper tensioner, anti-jam detection, exit bezel optional modules
-
Very silent operation and high print quality
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
640
Resolution (dots/mm)
8
Max Printing speed (mm/s)
200
Print resolution (dpi)
200
Sensor
Cover Open
Near End
Paper End
Black Mark
Cutting Characteristics
Cutter Home Position
Mechanical Switch
Cutter Type
Full & Partial
Media Characteristics
Media Type
Ticket
Label
Paper width (mm)
80 to 82.5
Printing width (mm)
80
Min. paper thickness (µm)
63
Max. paper thickness (µm)
220
Paper loading
Easy Loading
Media Roll Diamenter (mm)
250
Physical Characteristics
Dimensions (WxDxH mm)
125 x 92 x 56.6 (basic module)
Weight (g)
500 (basic module)
Operating Voltage
12V
Voltage range (Logic/Head)
5V or 3.3V ± 5% / 12 typ
16 v max
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Mechanical switch
Performance Characteristics
Connector Type
Serial UART
USB-C
RS232
Environment Characteristics
Operating temperature
From -25° to 70℃
Storage temperature
From -40° to + 80°C
Operating humidity
10% to 90% (no condensing)
Reliability
TPH
200 km / 100M pulses
Cutter
2 million cuts
Software
Command System
APS / POS + on-demand
Driver
Android + Utility Program + IPP USB (Driverless)
Linux
Windows
SDK / Plug-in
Android
Linux
Windows
Fonts / Graphics
Character Size (easy upgradable)
Font A : 12x24
Font B : 9x17
Barcode
CODABAR
CODE39
EAN13
ITF
UPC-A
UPC-E
Graphics
graphics & logos
Supporting all user-defined fonts
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Anti-jam detection
Exit bezel
Heavy-duty Label printing
Loop Presenter / Retractor
Paper Holder
Paper tensioner
Rewinder
Applications
Gaming & Lottery
Gas Pumps & Car Wash
ID Automation
Kiosk
Parking
Ticketing
Weighing Scales
Highlights and features
-
Heavy duty, compact and full modular
-
Fast printing speed up to 300 mm per second
-
Powerful cutter : full and partial for paper thickness from 63 to 190 um / 2 million cuts
-
Pulls large diameter paper roll up to 250 mm
-
Presenter/retractor, paper tensioner, anti-jam detection, exit bezel optional modules
-
Very silent operation and high print quality
