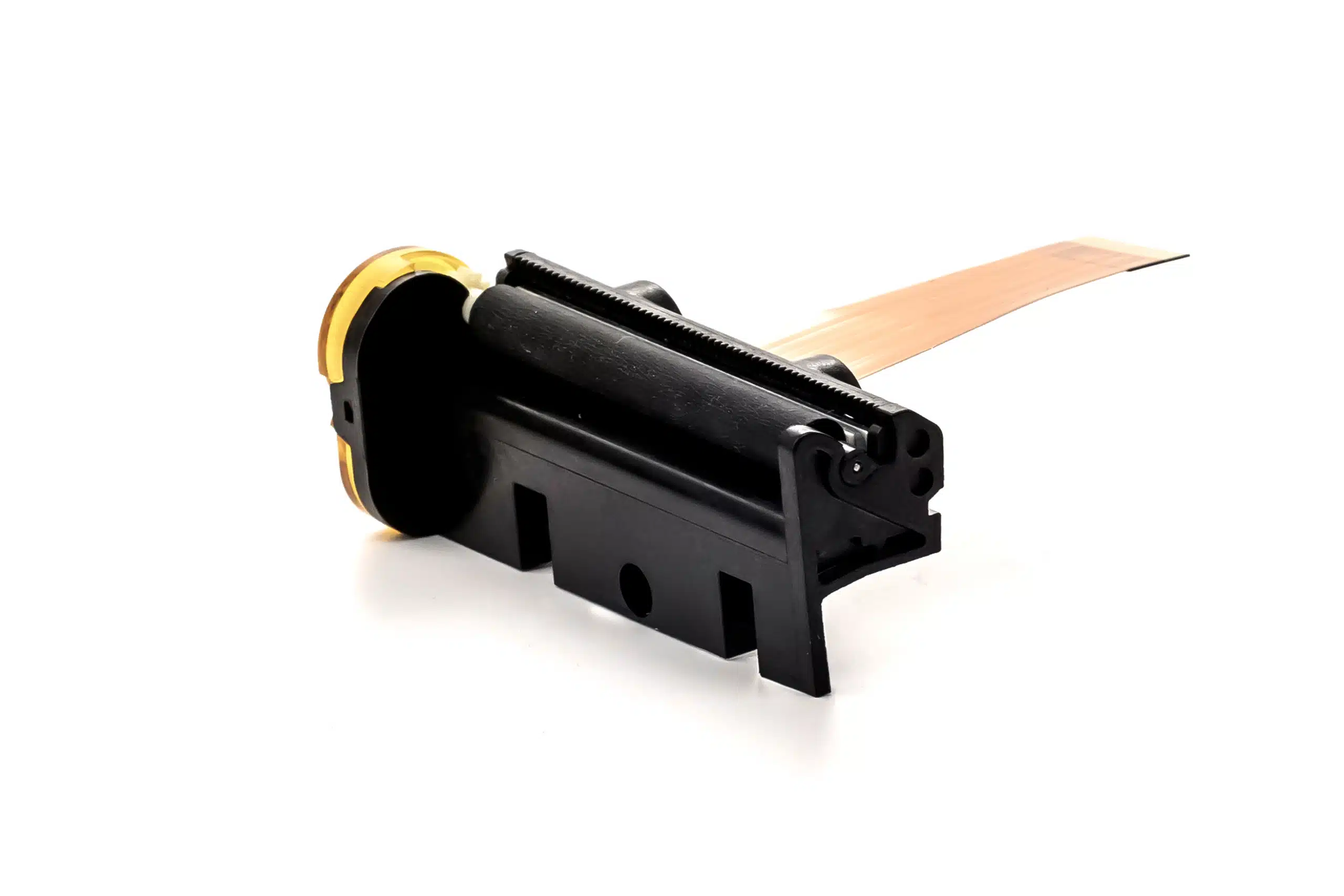

SS205-V5-HS
5V Super small high speed mechanism.
Highlights and features
-
Ultra compact & super light design
-
Patented easy loading and easy door opening system
-
Starting operating voltage as low as 3V for logic and 5.5V for the dots
-
Long TPH life of 100 million pulses or 50 km
-
Print speed up to 110 mm/s
-
Low consumption & noise
Download Specs Sheet Specifications
Options
Applications
Highlights
Print Characteristics
Print method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Max Printing speed (mm/s)
Up to 110
Print resolution (dpi)
200
Sensor
Paper End
Media Characteristics
Media Type
Ticket
Paper width (mm)
58 +0/-1
Printing width (mm)
48
Min. paper thickness (µm)
63
Max. paper thickness (µm)
80
Paper loading
Easy Loading
Physical Characteristics
Dimensions (WxDxH mm)
68 × 24 × 26
Weight (g)
29
Operating Voltage
5V
Voltage range (Logic/Head)
Logic: 2.7-5.25V / Dots : 5.5-9.5V
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Performance Characteristics
Connector Type
FPC
Environment Characteristics
Operating temperature
From -30° to 75℃
Storage temperature
From -40° to + 85°C
Operating humidity
20% to 90% (no condensing)
Reliability
TPH
50 km / 100M pulses
Standards
Certifications
ISO 9001:2015
ISO13485:2016 certified - RoHS compliant
ISO14001
Options
Chipset UC32
Applications
ATM
Automotive
Cash Registers
EFT POS
Fiscal Printers
Hand Held Terminals
Measuring Instruments and Analysers
Medical Equipment
Taxi Meters
Highlights and features
-
Ultra compact & super light design
-
Patented easy loading and easy door opening system
-
Starting operating voltage as low as 3V for logic and 5.5V for the dots
-
Long TPH life of 100 million pulses or 50 km
-
Print speed up to 110 mm/s
-
Low consumption & noise
